IMD-M09T

apply to HDR

FEATURES

①Integrated Matrix Device (IMD) solution, smaller pixel pitch, higher definition image display.

②Integrated Matrix Device (IMD) solution, smaller pins, solve the problems of soldering strength and crash.

③High precision cutting technology, solve the problems of warping and mixed light in display, achieve to the seamless combination

④Gold wire bonding, better reliability.

⑤Reduce the effect of moore grain, no modular color difference in whole screen, 100% tested and binning, better color consistency.

PRODUCT PARAMETERS

Product Name	Color	IF(mA) TEST	λd(nm) Typ	Iv(mcd) Typ	Vf(V) Typ	View angle (deg.)
IMD-M09T 1.6×1.6×0.67		5	620	15	2.0	120
		2	535	25	2.6	120
		2	464	3.5	2.7	120

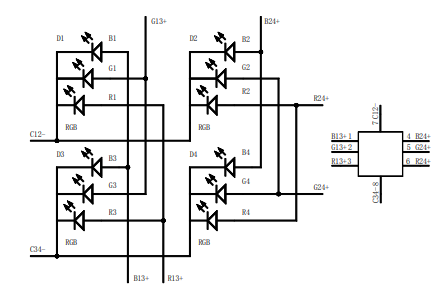

DIMENSIONS/UNIT(mm)
