Case Sharing | NATIONSTAR LED Driver-integrated TBC-T1515 Illuminates the Embassy of Iran in Vietnam, Unlocking a High-brightness Holographic New Visu

NATIONSTAR's Cutting-Edge Components Empower

Hanoi's Landmark Screen to Shine Brightly

Recently, the P3.91 high-brightness holographic display created by cooperative customer Sanmai Optoelectronics Technology was successfully lit up at the Embassy of Iran in Vietnam! Located in the core diplomatic area, this new technological landmark has instantly become the focus of the embassy district and even Hanoi, thanks to its stunning holographic visual effects and high-brightness, clear image quality. The core display component used in it is exactly the driver-integrated LED device TBC-T1515 innovatively launched by the RGB Device Business Unit of NATIONSTAR.

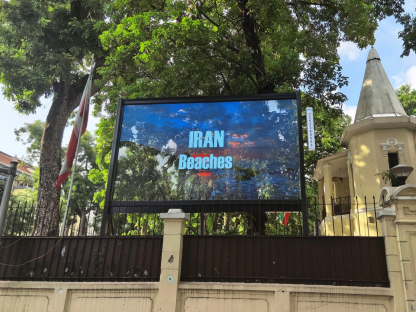

▲The screen displays clear and realistic images during the day and brilliant, glowing effects at night.

It perfectly combines excellent high-brightness display with unique holographic visual effects. Whether under the scorching sun or in the dark of night, it can present a stable, clear, full-color and layered stunning picture. It not only brings an immersive experience for the embassy's information release and cultural display, but also becomes a bright window to showcase a modern diplomatic and technological image with a solemn and futuristic atmosphere.

The Unsung Hero

NATIONSTAR TBC-T1515 Integrated LED Driver Device

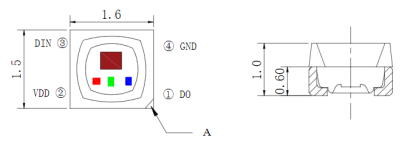

▲ TBC-T1515

This outdoor visual masterpiece is extremely visually stunning, thanks to the three core "driver-integrated" advantages of NATIONSTAR’s TBC-T1515:

1. Thinner Body, Higher Transmittance

The LED beads and driver IC are highly integrated, featuring an extremely streamlined structure that greatly reduces the screen’s weight and thickness. Compared with traditional magic light beads, it has a smaller volume and thinner thickness. When applied to transparent screen solutions, the light transmittance is significantly improved, while the high-brightness image quality remains uncompromised!

2. More Stunning Image Quality, Stronger Appeal

The LED beads feature ultra-high brightness, enabling the P3.91 pixel pitch screen to easily reach 3500 nits. The image remains clear, striking and true to color even under direct sunlight. Equipped with 16-bit cinema-grade grayscale, the color transition is as smooth as silk, and the picture layers are deep and rich.

3. More Economical Energy Consumption, Better Choice

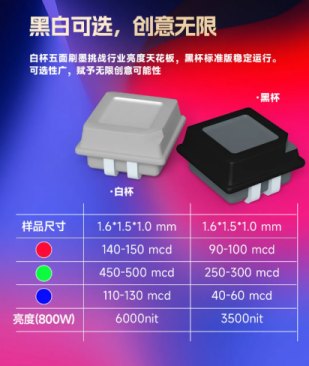

Under the same high-brightness effect (P3.91 & 3500 nits), the power consumption of the screen equipped with TBC-T1515 is only about 800W, a direct reduction of 16.6% compared with the same-level 1515 screens on the market! In addition, the TBC-1515 series also offers a white cup model option. Under the same power consumption, the overall screen brightness can reach an amazing 6000 nits, meeting the demand for extreme high brightness!

NATIONSTAR "Magic Color" Sets Another Milestone

Illuminating the Global High-End Visual Horizon

The successful lighting of the Iranian Embassy in Vietnam project is another milestone for the "Magic Color" series products of NATIONSTAR’s RGB LED Business Unit in conquering the international high-end visual effect field! This not only confirms NATIONSTAR’s cutting-edge technological strength in the field of LED core devices, but also demonstrates the global customers’ dual recognition of NATIONSTAR’s devices for their outstanding performance — especially the high-brightness adaptation in multiple scenarios and the extreme energy efficiency.

▲Actual Photos of Project Cases

In the future, NATIONSTAR will continue to take innovation as the driving force, create more advanced, reliable and energy-efficient display solutions for global partners, and join hands to illuminate the infinite possibilities of the smart visual world.
