Look! This is what NATIONSTAR's MIP products look like

Could an LED display device less than one millimeter in diameter be the "backbone" of ultra-high-definition LED large screens?What cutting-edge technologies lie behind these tiny components?

Recently, Chancheng Convergence Media Center’s series report Renewal Stories of Chancheng Enterprises visited NATIONSTAR to experience the company’s new LED display products and explore the new quality productivity hidden in these small devices.

1. Look: This is what NATIONSTAR's MIP devices look like

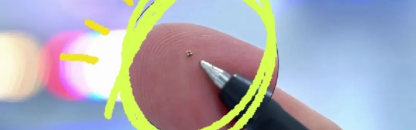

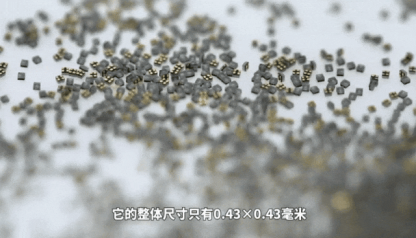

The picture shows NATIONSTAR's mass-producible smallest device, the MIP0404, with an overall size of just 0.43×0.43 mm — slightly smaller than the tip of a regular ballpoint pen.Thanks to NATIONSTAR’s ultra-thin packaging technology, the module thickness can be as thin as 230 micrometers.

NATIONSTAR’s new MIP series features high brightness, high contrast, low power consumption, and strong compatibility, covering pixel pitches from P0.6 to P1.2.It meets ultra-high-definition display demands for scenarios such as video conferencing, exhibition advertising, virtual reality, and monitoring & dispatch.

2. Q: How are MIP devices packaged?

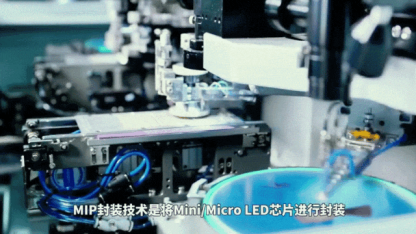

In the field of small-pitch direct-view LED displays, MIP (Mini/Micro LED in Package) is manufactured using an all flip-chip process. It requires no wire bonding; instead, Mini/Micro LED chips are combined with high-precision carriers for chip-level packaging, then diced into single-pixel or multi-pixel devices (i.e., large-area display panels are separately packaged).This greatly improves yield control even at smaller device sizes.

After these steps, the products undergo binning and color mixing, which directly screens out defective units, effectively reducing testing difficulty and cost. Finally, the products are packaged and delivered to downstream manufacturers for SMT assembly (with optional screen surface lamination), completing the display production.

3. Discussion: New Quality Productivity Hidden in Tiny Devices

As LED displays enter the era of ultra-high-definition with micro-pitch and high refresh rates, MIP — with its excellent performance, superior display quality, and low overall cost — has become one of the most watched packaging technologies in the small-pitch direct-view LED sector.

As a leader in the LED packaging industry, NATIONSTAR is a pioneer in the MIP technical route.Based on the concept of fan-out packaging, NATIONSTAR has used its self-developed mass transfer method to significantly enhance the optoelectronic performance of MIP series products, lower the manufacturing and mounting difficulty of module PCBs, and ensure compatibility with existing production equipment. This provides a key technical edge for accelerating the commercialization of Mini/Micro LED in large direct-view display applications.

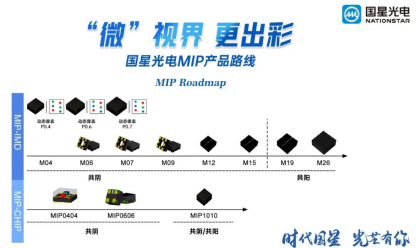

At present, NATIONSTAR has established a MIP product portfolio covering MIP-IMD and MIP-CHIP to suit different LED display pixel pitches and application scenarios. To enable even smaller-pitch applications, the company has introduced dynamic pixel technology in its new MIP-IMD series. Through reconfiguring and rearranging LEDs, it has broken through the limits of physical pixels, achieving display effects down to P0.39 pitch.This allows small-pitch products to support 4K and 8K resolution while greatly optimizing costs.

These innovations and technological breakthroughs in the small-pitch direct-view LED sector vividly demonstrate NATIONSTAR’s proactive efforts in fostering new quality productivity.

Technological innovation and new product launches have not only strengthened the company’s core competitiveness but also provided strong support for the high-quality development of the entire LED display industry. Going forward, NATIONSTAR will continue to uphold technological innovation, focus on its core business, and strengthen its RGB industry leadership.It will provide the market with more innovative technological products and solutions, and strive to meet the people’s ever-growing needs for a better life.
