PRODUCT FEATURES

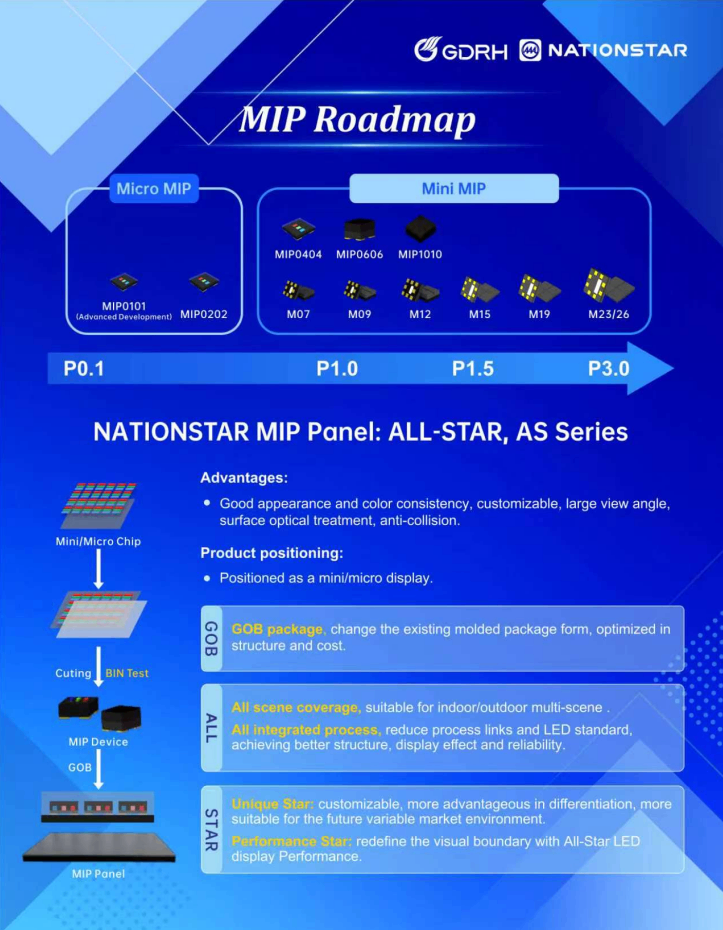

1. Micro-pitch MIP device, with proprietary coating process, offers excellent anti-dropping performance and superior reliability
2. Ultra HD display, high resolution, superior display effects, capable of achieving 4k/8K picture quality.
3. LED are customizable with adjustable brightness, meeting demands for high-end and high-definition displays.
4. Underfill fills gaps beneath chips to optimize black surface and elevate contrast.
APPLICATION

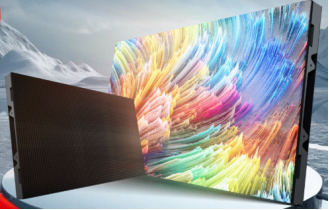

Actual effect
Semi outdoor display advertising
Integrated machine
Home multimedia television
INFORMATION
https://mp.weixin.qq.com/s/tlbnBKrWF8Gf1N4Dm7GXjA
https://mp.weixin.qq.com/s/lO9uxG0yzenx_7THZAV90A
https://mp.weixin.qq.com/s/wrd1AvMREFrCKDm8k-cGow
https://mp.weixin.qq.com/s/YacqA1jybtdB-hqUzan0Og
https://mp.weixin.qq.com/s/iMuiL7Cn-mOKxUllURuZ3w
https://mp.weixin.qq.com/s/awepN6Lf9zN0qcAakfawzw
https://mp.weixin.qq.com/s/3fjlvdesJaySLO1-FFRGGg
SERIES PRODUCTS
AS 1.5 | AS 1.2 | AS 0.9 | AS 0.7 | |
Pixel Pitch (mm) | 1.56 | 1.25 | 0.93 | 0.78 |
Module Size(mm) | 300*168.75 | 300*168.75 | 300*168.75 | 300*168.75 |
Led Package | Flip chip 1010/0606 | Flip chip 1010/0606 | Flip chip 0606 | Flip chip 0202 |
Brightness(cd/m2) | 0-3000 | 0-3000 | 0-3000 | 0-3000 |
Refresh Rate(Hz) | ≥7680 | ≥7680 | ≥7680 | ≥7680 |
lnput Voltage(v) | AC100-240 | AC100-240 | AC100-240 | AC100-240 |
Viewing Distance(m) | 3.13 | 2.13 | 1.875 | 1.563 |
Peak power consumption（W） | 35 | 50 | 60 | 60 |
Peak power consumption（screen）（W/m2） | 175 | 250 | 300 | 300 |
