PRODUCT FEATURES

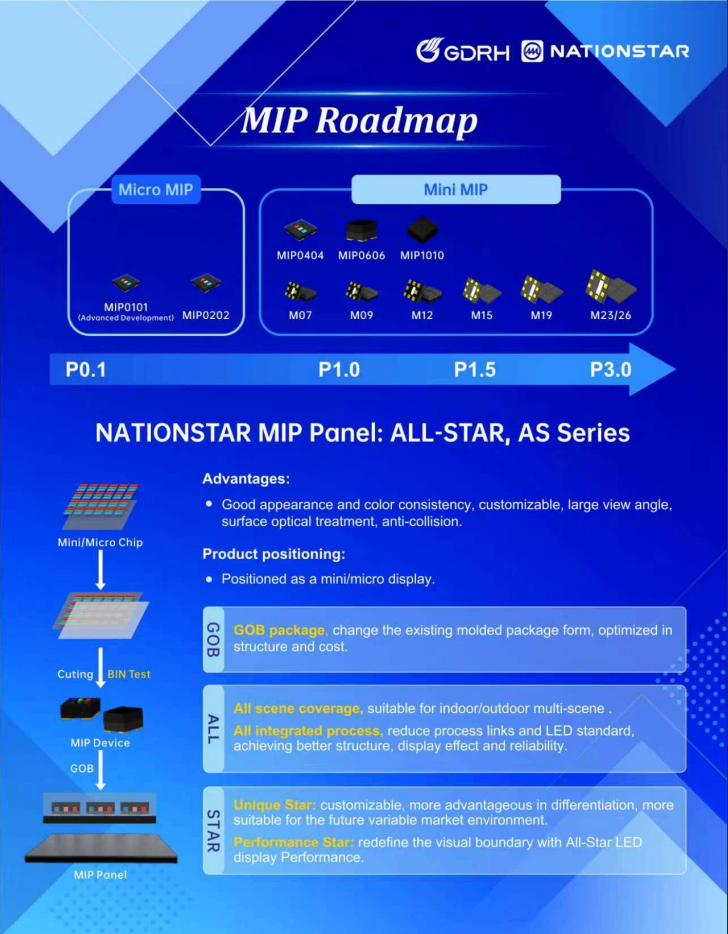

1. MIP device paired with a proprietary coating process, offering excellent reliability.
2. Fully integrated process, resulting in a more optimal structure and better display effects.
3. LED chips can be customized, brightness is adjustable, suitable for applications both indoors and outdoors.
PRODUCT PARAMETERS
CS 0.9 | |
Pixel Pitch (mm) | 0.93 |
Module Size(mm) | 300*168.75 |
Led Package | Flip chip 0606 |
Brightness(cd/m2) | 0-3000（adjustable） |
Refresh Rate(Hz) | ≥3840 |
lnput Voltage(v) | AC100-240 |
Viewing Distance(m) | 1.875 |
Peak power consumption（W） | 60 |
Peak power consumption（screen）（W/m2） | 300 |
APPLICATION
Actual effect
Semi outdoor display advertising
Integrated machine
Home multimedia television
INFORMATION
https://mp.weixin.qq.com/s/tlbnBKrWF8Gf1N4Dm7GXjA
https://mp.weixin.qq.com/s/lO9uxG0yzenx_7THZAV90A
https://mp.weixin.qq.com/s/wrd1AvMREFrCKDm8k-cGow
https://mp.weixin.qq.com/s/YacqA1jybtdB-hqUzan0Og
https://mp.weixin.qq.com/s/iMuiL7Cn-mOKxUllURuZ3w
https://mp.weixin.qq.com/s/awepN6Lf9zN0qcAakfawzw
https://mp.weixin.qq.com/s/3fjlvdesJaySLO1-FFRGGg
SERIES PRODUCTS
CS 1.5 | CS 1.2 | CS 0.7 | |
Pixel Pitch (mm) | 1.56 | 1.25 | 0.78 |
Module Size(mm) | 300*168.75 | 300*168.75 | 300*168.75 |
Led Package | Flip chip 1010/0606 | Flip chip 1010/0606 | Flip chip 0404 |
Brightness(cd/m2) | 0-3000 | 0-3000 | 0-3000 |
Refresh Rate(Hz) | ≥3840 | ≥3840 | ≥3840 |
lnput Voltage(v) | AC100-240 | AC100-240 | AC100-240 |
Viewing Distance(m) | 3.13 | 2.13 | 1.563 |
Peak power consumption（W） | 35 | 50 | 60 |
Peak power consumption（screen）（W/m2） | 175 | 250 | 300 |
